NLED OLED Display Board

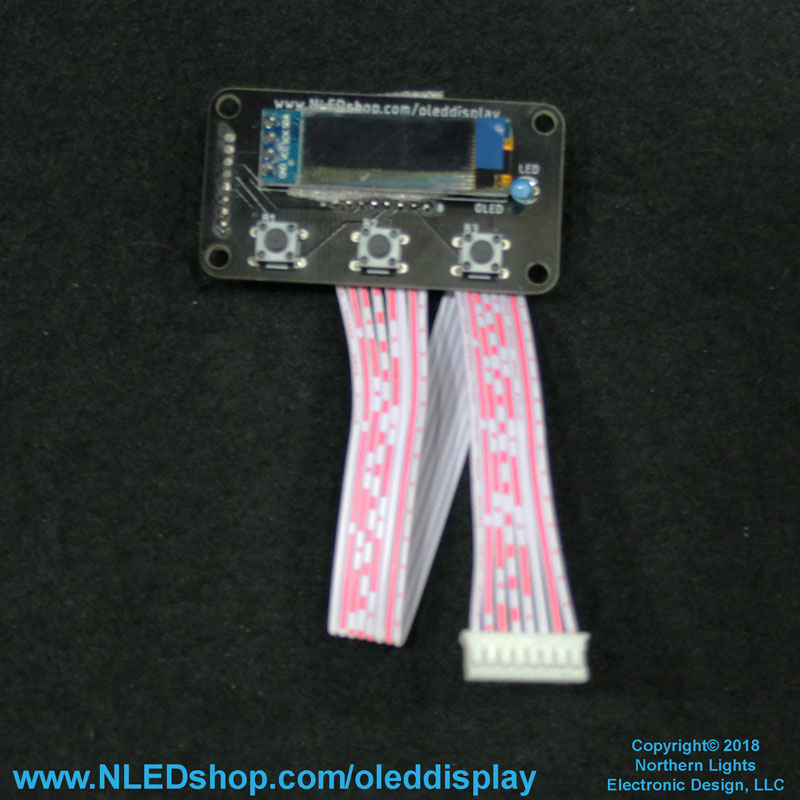

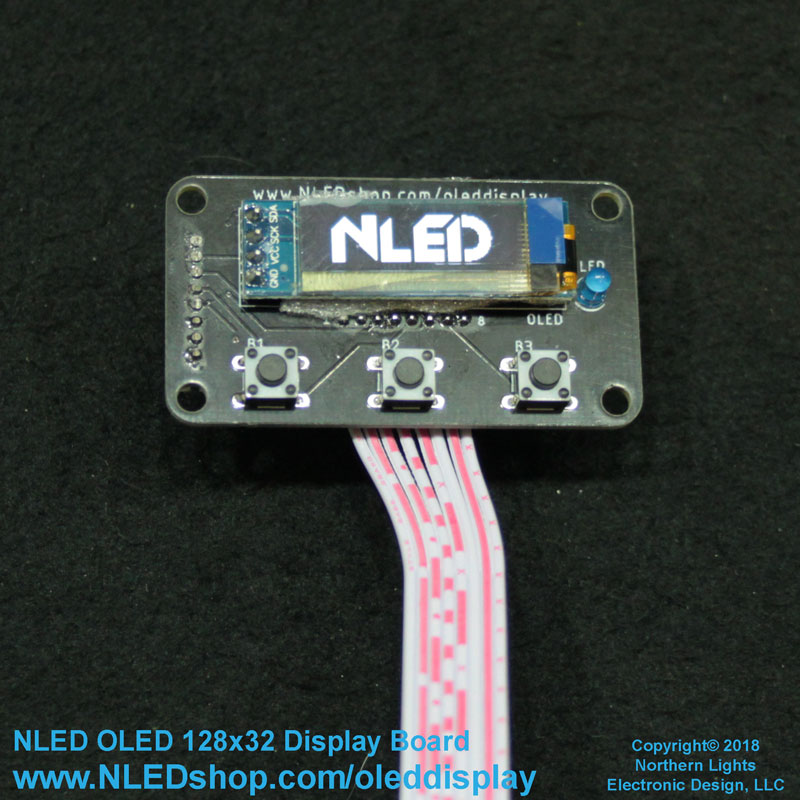

This is a simple carrier board is for the 128x32 I2C OLED display based on the SSD1306 chipset. It has three on board buttons, and two positions for connecting an 8-pin JST-PH(2.0mm pitch) wire harness. Supports both right angle and straight 8-pin JST-PH headers. NLED controllers which utilize a 128x32 OLED display is compatible with this device.
Offering multiple offerings of this device, with either right angle or straight headers, in either of the two positions. For Arduino and other DIY projects, this device is offered as a parts kit. Assemble it how ever you like and use one of the many code examples and libraries to interface with it. All options are offered with a compatible blue or white colored 128x32 OLED display.
Short Feature List:
- Supports the SSD1306 series of OLED displays, 128x32 resolution.

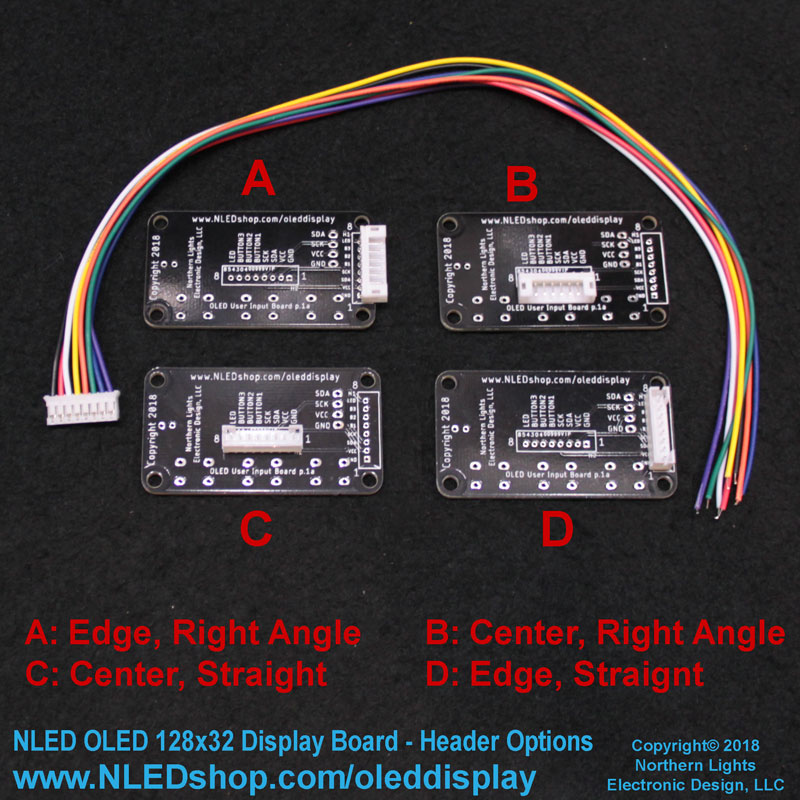

- Multiple connecting options. Right angle, straight, edge, and center.
- Free and Open Hardware.
- Utilizes off the shelf 8-pin JST-PH connectors. 2.0mm pitch.
- Up to 3 optional buttons, part package offers multiple stem heights.

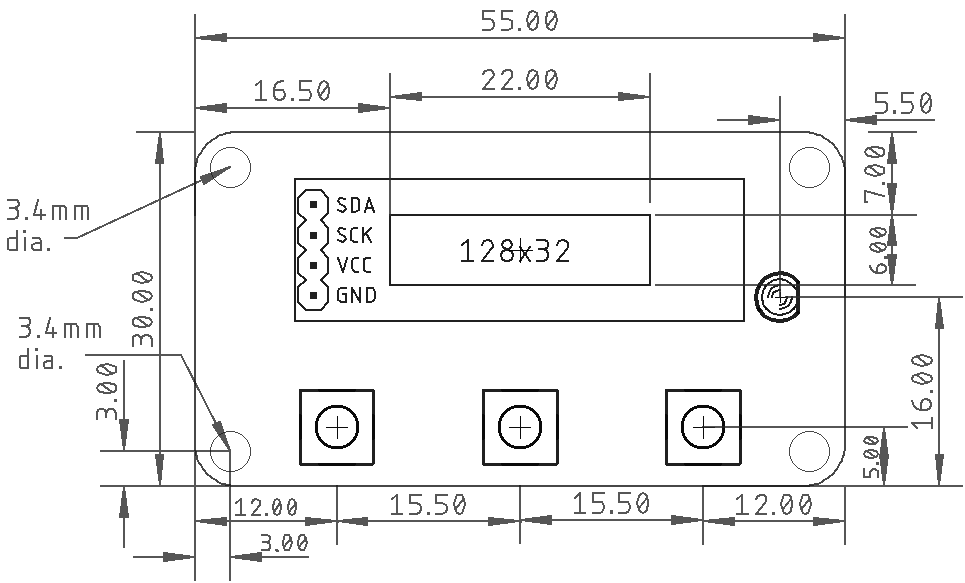

- Board size is 30mm x 55mm
- OLED height off the PCB is adjustable.
- Supports all OLED colors. White, Blue, Yellow, Red.(Not all colors are stocked)

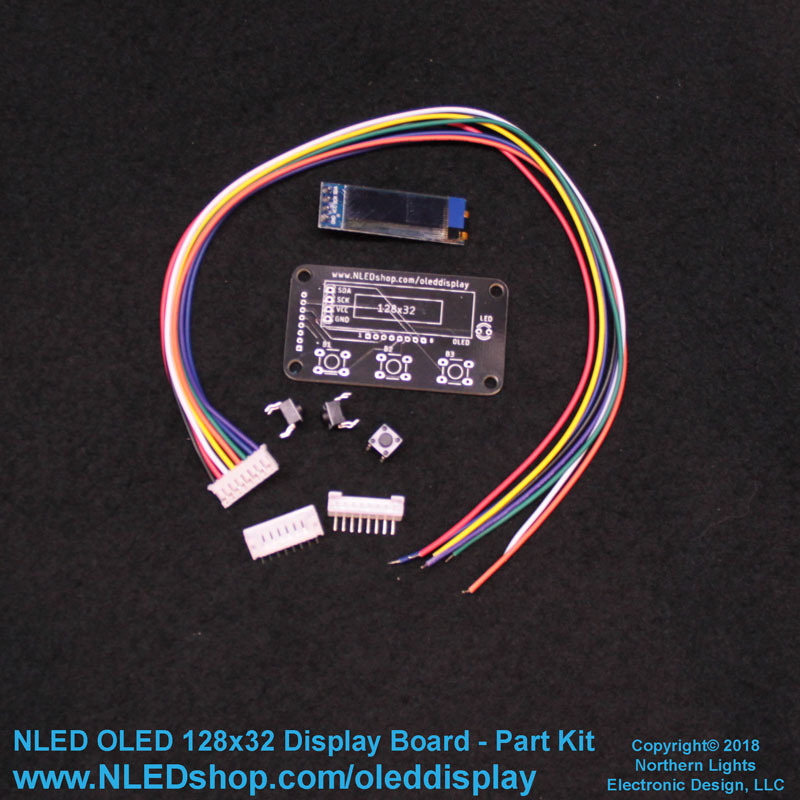

- Available ready to use or as a parts kit for DIY projects.
| Purchase Device | www.NLEDshop.com |
| Purchase Parts Kit | www.NLEDshop.com |
| Purchase Bare PCB | www.NLEDshop.com |
| View Datasheet | View/Download |
| Download Project Files | Download / GitHub |
| Panel Cut Out DXF | Download |
